Flange type
As per customer requirement, or a standard MS flange in stainless or carbon steel.
POWERING A STRONGER FUTURE
THE ONLY IN-HOUSE RADIATOR MANUFACTURING LINE IN THE GCC
Shorter lead times, guaranteed local supply, and one accountable quality chain from cold-rolled steel sheet to dispatch.
The role of the radiator
Radiators are what carry a transformer's heat away, extending transformer life. These radiators dissipate heat efficiently, keeping oil and winding temperatures within safe limits, which is essential for reliable operation. As a core component, they are not optional, but a fundamental part of transformer design and performance. With in-house production, we respond quickly to client needs across the Gulf, North Africa, and the wider Middle East, ensuring shorter lead times and dependable support — uniquely positioned as a regional manufacturer.
Our line
Photographed on our own production line.
-

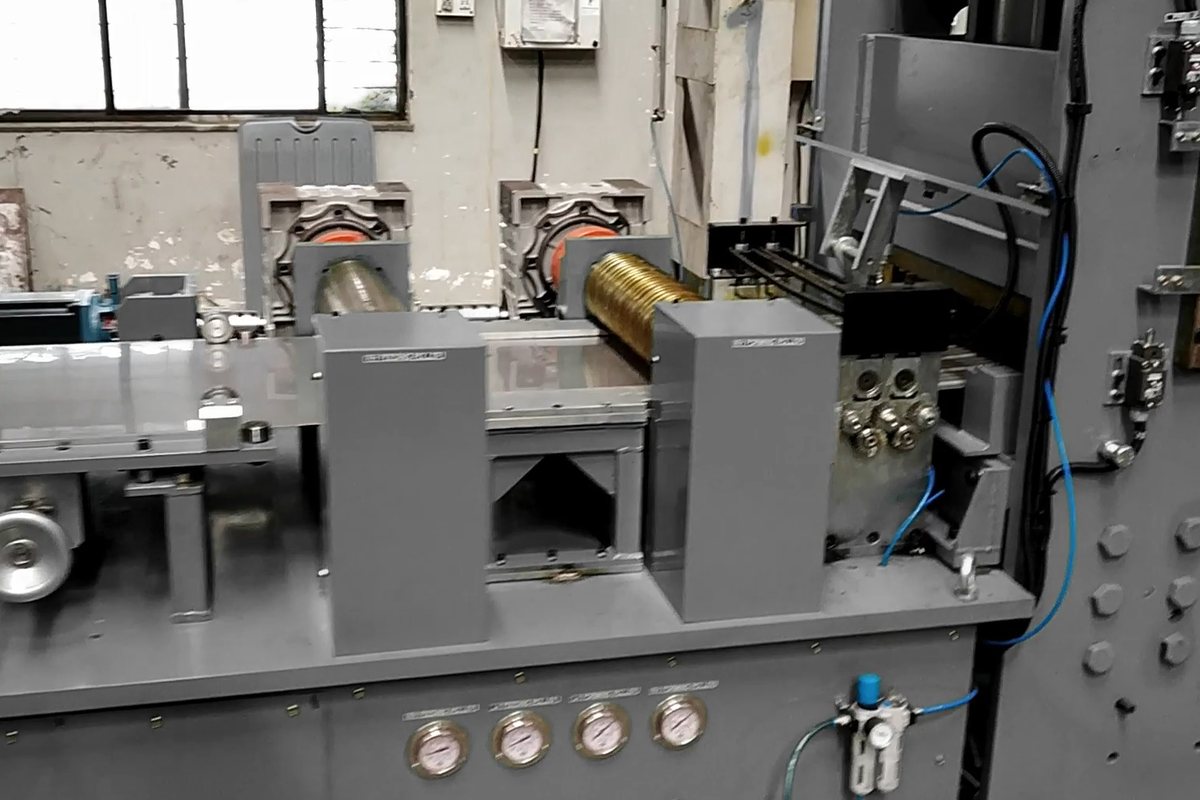

Panel forming, with pneumatic control down the length of the line -

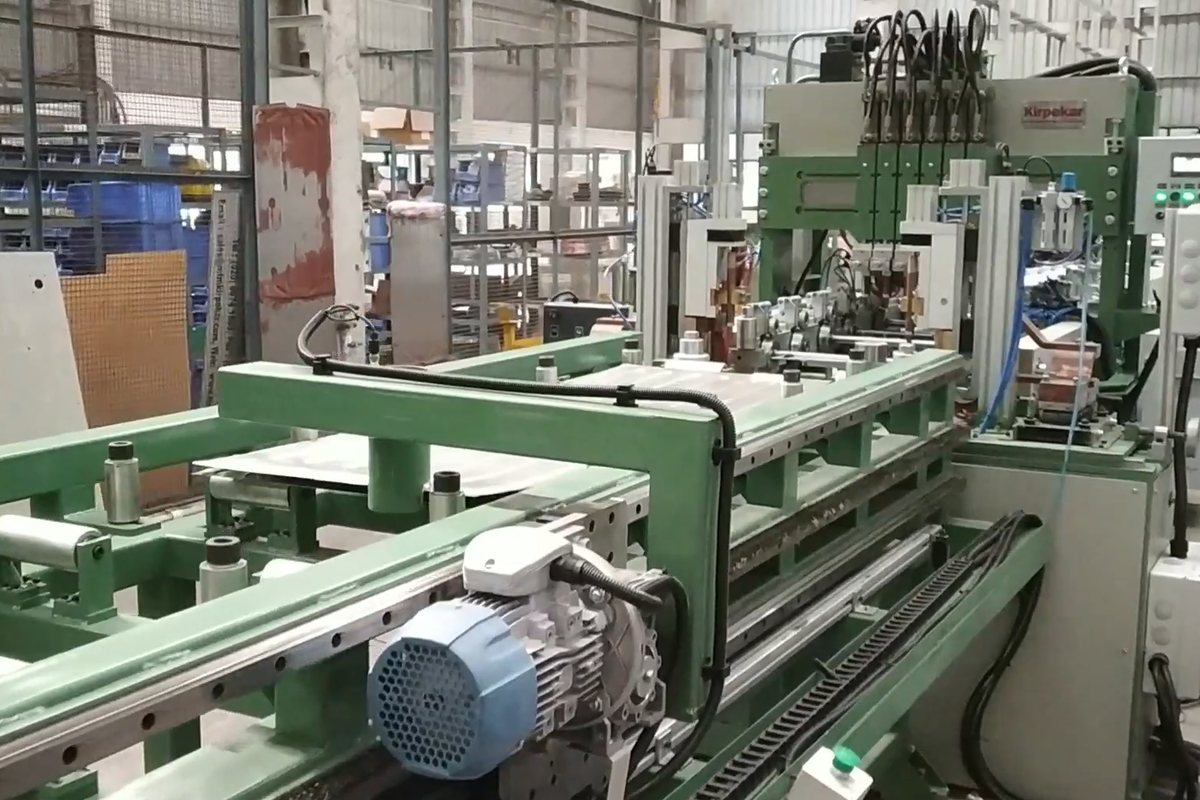

Automated welding for leak-proof joints -

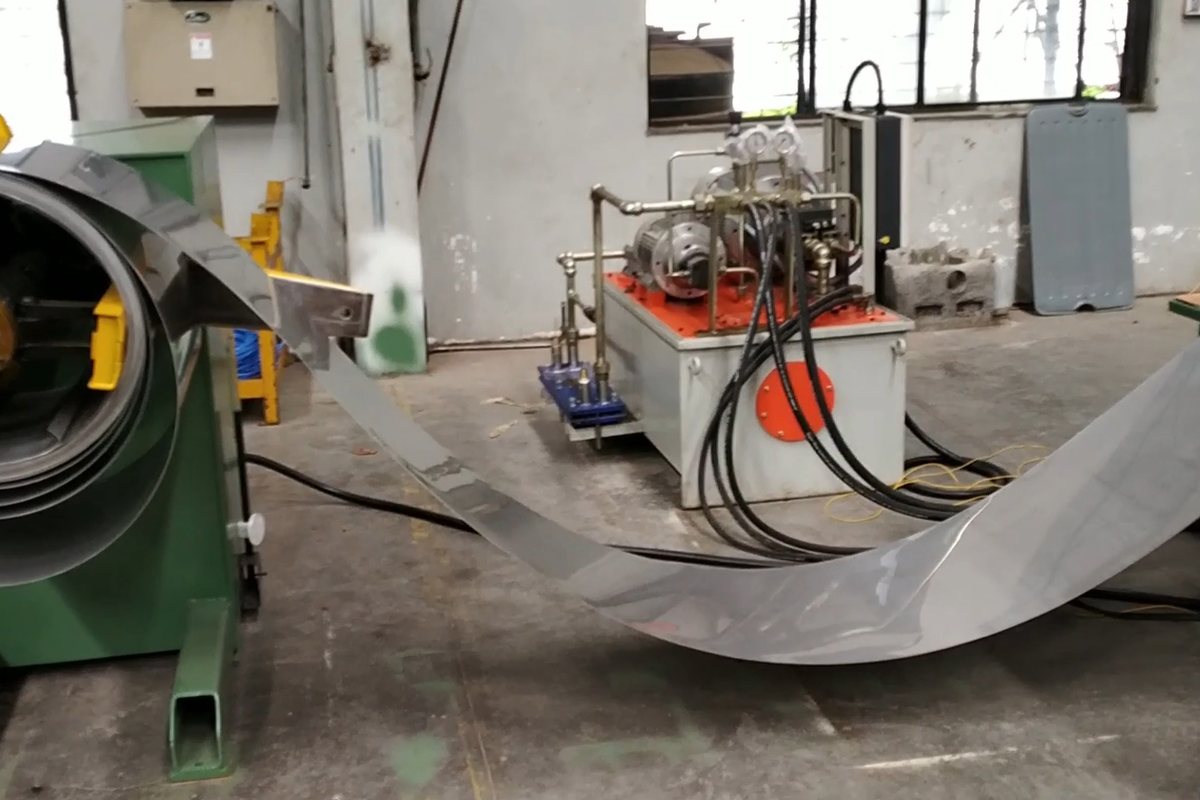

Panels formed from cold-rolled steel rolls -

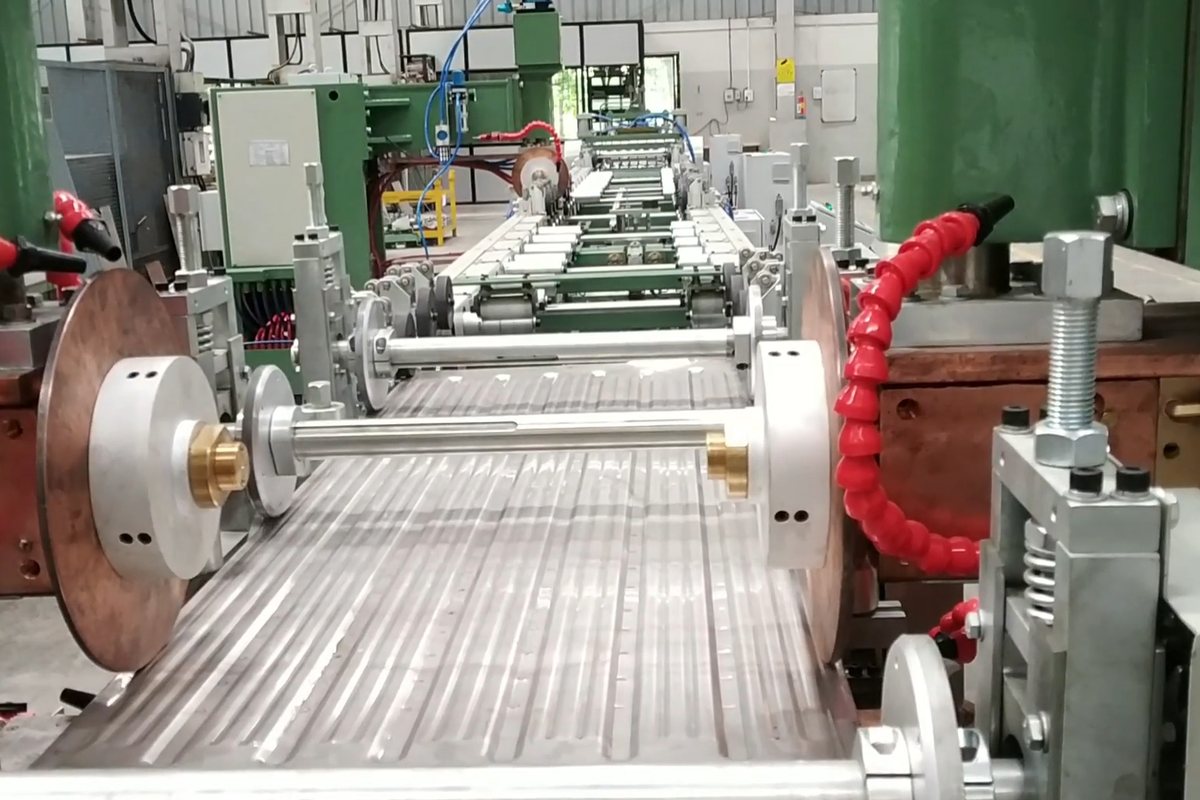

The corrugated profile taking shape as the panel runs the length of the line
Manufacturing capabilities
-
Panels manufactured from cold-rolled steel rolls / stainless steel rolls
-
Precision panel pressing and automated welding for leak-proof joints
-
Detachable (with valves) or welded fixed configurations
Show all (7) Show less
-

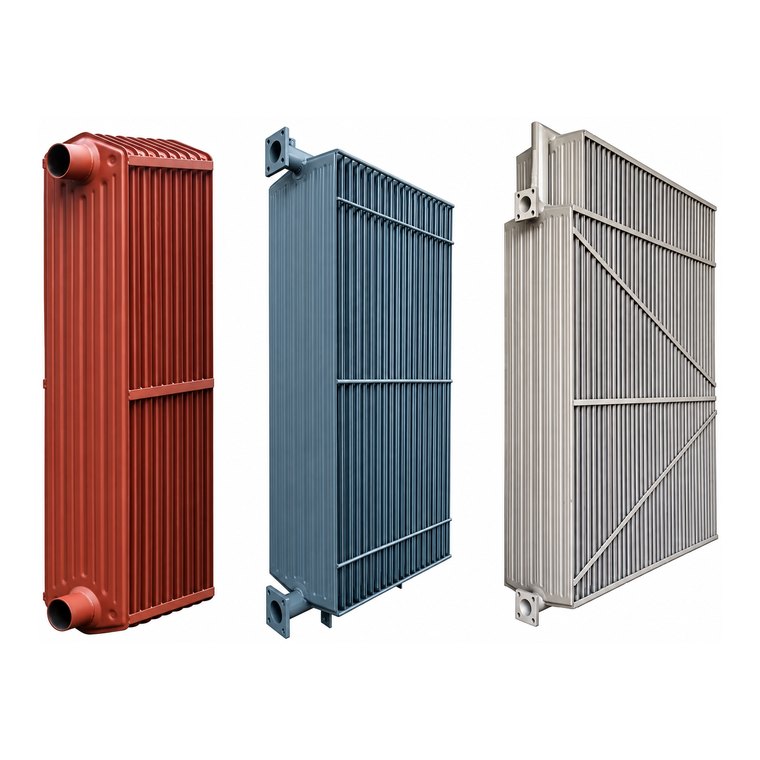

Shot-blasted, primed, polyurethane/epoxy finish for corrosion resistance
-
Hot-dip galvanized option for offshore and high-corrosion environments
-
Every unit individually pressure and leak tested before dispatch
-
Standard and custom dimensions for ONAN / ONAF cooling requirements
Build options
Four things you specify on every order.
-
-
Off set
Radiator tubes mounted with an offset to the left or to the right of the panels.
-
Stainless steel 316L
Metal parts can be manufactured in stainless steel — 304, 316L and other grades.
-
Passivation
Stainless steel radiators are passivated to achieve a proper surface against corrosion.
Radiator specification
Every dimension below is a build option, not a fixed catalogue item — panels are made to the length and count your transformer needs.
| Specification | Ind. | Data |
|---|---|---|
| Radiator width | W | 230 (231), 300 (302) or 520 (523) mm |
| Number of flutes | NF | 2 at 230 mm · 3 at 300 mm · 6 at 520 mm |
| Panel and tube material | Carbon steel, or stainless steel 304 / 316L | |
| Number of panels | NP | As per customer requirement |
| Steel thickness | 1.00 mm – 1.20 mm | |
| Panel length | 600 mm to 3,500 mm, in 50 mm steps | |
| Max. slot pairs per header pipe | Up to 40 | |
| Test pressure | 2 kg/cm² for 30 minutes | |
| Inside surface treatment | Air dry varnish | |
| Header pipe diameter | 90 / 75 mm, 1.50 – 2.00 mm wall | |
| Max. header pipe length for slotting | Up to 2,000 mm | |
| Type | Weldable · Flange · Offset · Swan | |
| Manufacturing standard | IEEMA 1999:9 | |
| Accessories | Lifting hook, air release plug, drain plug | |

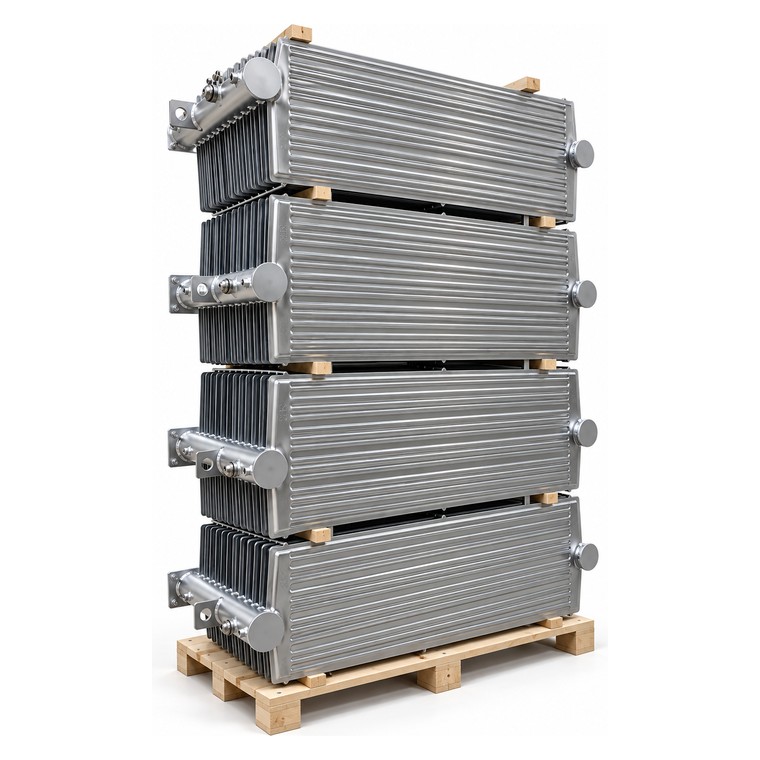

| Packing | Wooden pallet or wooden crate | |
| Bracing straps | MS flat, as per customer requirement |
Build your product code
Set the seven options and the part number assembles itself. Send us the code and we know exactly what to make.
Your product code
Why in-house manufacturing matters
-
Lead time
No overseas shipping queues — radiators are pressed, welded, tested, and dispatched locally.
-

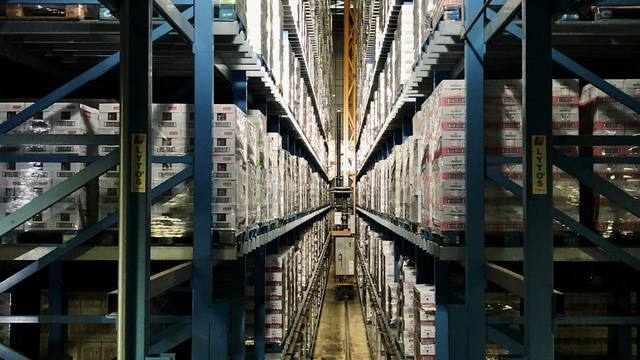

Local supply
Regional stock and production security for maintenance programs and emergency replacements.
-
Quality control
One accountable chain: our steel, our welding, our pressure testing, our dispatch.
NEED RADIATORS FAST?
Standard and custom dimensions, detachable or welded, painted or galvanized.
